Versa Vision Systems and Omni CMMs: Comprehensive Precision Measurement Solutions

Versa Series Product Specifications Comparison

Compare key technical specs across models to quickly find the best measurement solution for you

Detailed Technical Specifications

Technical Specifications
Product Model	S4030
Stroke (mm)	X:400 Y:300 Z:200
External Dimensions (LxWxH) (mm)	980×660×1820
Weight (kg)	300
Weight Capacity (kg)	30
Grating Ruler (μm)	0.5 (Metal Foil Scale)
Minimum Display Unit (mm)	0.0001
Detection Accuracy (μm)	X/Y: 2.5 + L/200
	X⊥Y: 3.0 + L/200
	Z: 5.0 + L/200
Maximum Speed	XY: 500 mm/s
Maximum Speed	Z: 200 mm/s
Maximum Acceleration	XYZ: 1000 mm/s²
Vision Measuring System	Microcore
Image Sensor	130W HD Color Industrial Digital Camera
Sensor Configuration	Optional: (1) Contact Probe, (2) White Light Confocal, (3) Point Laser, 3D Line-Scan Laser
Light Source	Edge Light: LED telecentric parallel cold light source, 256-level brightness adjustment
Light Source	Surface Light: Programmable 5 loop, 8 zone LED cold light source with 256-level adjustable brightness
Optical Lens	6.5:1 Manual Zoom
Zoom Level	Optical Zoom: 0.7-4.5X, Digital Zoom: 32~206X
Rail	3-Axis Precision Guide Rail
Power Supply Voltage	AC 00~24 V, 50/60 Hz (Ground wire)
Work Environment	Temperature: 20℃±2℃, Temperature Change: <2℃/HR, Humidity: 20%~80%, Vibration: <0.002g, Below 15Hz

Technical Specifications
Product Model	D5040 / D6050 / D8060
Stroke (mm)	X:500~800 Y:400~700 Z:200
External Dimensions (LxWxH) (mm)	1675×1275×1720
Weight (kg)	1500~2100
Weight Capacity (kg)	30
Grating Ruler (μm)	0.5 (Metal Foil Scale)
Minimum Display Unit (mm)	0.0001
Detection Accuracy (μm)	X/Y: 3.0 + L/200
	X⊥Y: 3.0 + L/200
	Z: 5.0 + L/200
Maximum Speed	XY: 600 mm/s
Maximum Speed	Z: 200 mm/s
Maximum Acceleration	XYZ: 1000 mm/s²
Vision Measuring System	Microcore
Image Sensor	High-definition color CCD, high-resolution color industrial camera
Sensor Configuration	Optional: (1) Contact Probe, (2) White Light Confocal, (3) Point Laser, 3D Line-Scan Laser
Light Source	Edge Light: LED telecentric parallel cold light source, 256-level brightness adjustment
Light Source	Surface Light: Programmable 5-ring, 8-zone LED cold light source with 256-level brightness adjustment.
Optical Lens	0.7-4.5X Zoom Objective + 0.3X/0.5X/1.0X Auxiliary Objective
Zoom Level	Optical Zoom: 0.7-4.5X, Digital Zoom: 32~206X
Rail	Precision linear guide + Servo motor drive
Power Supply Voltage	AC 220V±10%, 50Hz, 2KW (Ground wire required)
Work Environment	Temperature: 20℃±2℃, Temperature Change: <2℃/HR, Humidity: 30%~70%, Vibration: <0.002g, Below 15Hz

Technical Specifications
Product Model	F4030 / F5040 / F6050
Stroke (mm)	X:400~600 Y:300~500 Z:200
External Dimensions (LxWxH) (mm)	1200×850×1950
Weight (kg)	550~700
Weight Capacity (kg)	40~60
Grating Ruler (μm)	0.5 (Metal Foil Scale)
Minimum Display Unit (mm)	0.0001
Detection Accuracy (μm)	X/Y: 2.8 + L/220
	X⊥Y: 3.2 + L/220
	Z: 4.5 + L/220
Maximum Speed	XY: 800 mm/s
Maximum Speed	Z: 250 mm/s
Maximum Acceleration	XYZ: 1200 mm/s²
Vision Measuring System	Microcore AI Snap
Image Sensor	1.3MP High-Speed Color CCD
Sensor Configuration	Optional: (1) Contact Probe, (2) White Light Confocal, (3) Point Laser, 3D Line-Scan Laser
Light Source	Edge Light: LED telecentric parallel cold light source, 256-level brightness adjustment
Light Source	Surface Light: Programmable 5-ring, 8-zone LED cold light source with 256-level brightness adjustment.
Optical Lens	0.7-4.5X Motorized Varifocal Lens
Zoom Level	Optical Zoom: 0.7-4.5X, Digital Zoom: 32~206X
Rail	High-Precision Linear Guide + Servo Motor
Power Supply Voltage	AC 220V ±10%, 50Hz, 1.5KW (Grounding required)
Work Environment	Temperature: 20℃±2℃, Temperature Change: <2℃/HR, Humidity: 30%~70%, Vibration: <0.002g, Below 15Hz

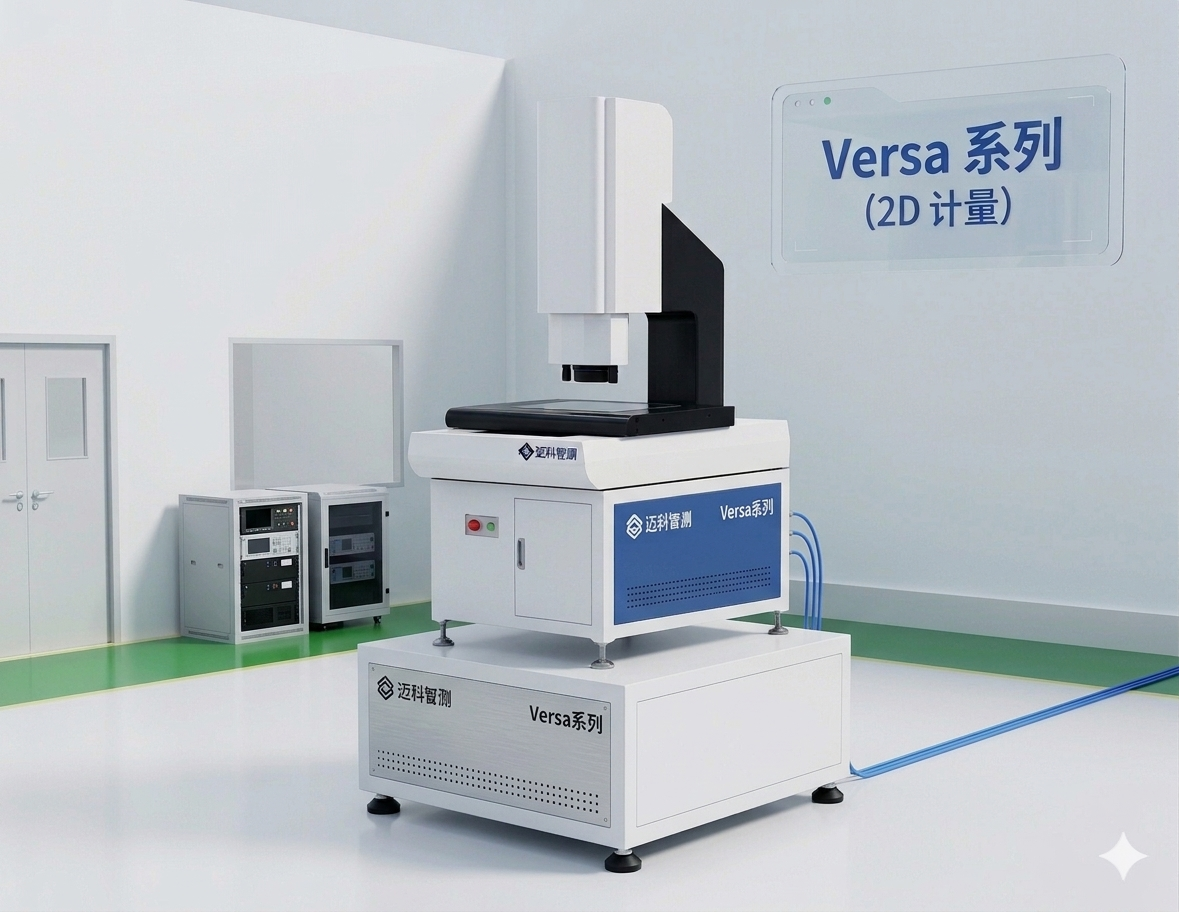

Versa Versa-S Precision Vision Measuring System

Fully Automatic Compact Optical Coordinate Measuring Machine

Versa-S Precision Vision Measuring SystemFully Automatic Compact Optical Coordinate Measuring Machine

Standard Model: 0.5μm grating scale, 130W industrial camera, with OMM-Titan basic 2D measurement engine as standard

Core Features

Auto-edge detection for fast workpiece positioning
Auto rapid focus, ready to measure in 2 seconds
Cost-effective choice for general machinery, hardware, and plastic industries

Technical Specifications (Partial Display)

Technical Specifications
Product Model	S4030
Stroke (mm)	X:400 Y:300 Z:200
External Dimensions (LxWxH) (mm)	980×660×1820
Weight (kg)	300
Weight Capacity (kg)	30
Grating Ruler (μm)	0.5 (Metal Foil Scale)
Minimum Display Unit (mm)	0.0001
Detection Accuracy (μm)	X/Y: 2.5 + L/200
	X⊥Y: 3.0 + L/200
	Z: 5.0 + L/200
Maximum Speed	XY: 500 mm/s

Get Quote Book a Demo

Versa Versa-D Gantry Large-Travel Vision Measuring System

Dragon Fully Automatic Large-Travel Moving Gantry Vision Measuring System – High-Precision Granite Machine Base, Precision Linear Guides, Programmable Ring Light; Optional Linear Motor

Versa-D Gantry Long-Travel Vision Measuring SystemDragon Fully Automatic Large-Travel Moving Gantry Vision Measuring System: High-Precision Granite Base, High-Precision Linear Guides, Programmable Ring Light, Optional Linear Motor

Benchmark for Flight Measurement Efficiency with Dual-View Fusion

Core Features

Dual-field fusion technology, large-travel gantry design
Flight measurement: 3–5x efficiency gain
Ideal for 3C electronics, precision stamping, and optical communication industries

Technical Specifications (Partial Display)

Technical Specifications
Product Model	D5040 / D6050 / D8060
Stroke (mm)	X:500~800 Y:400~700 Z:200
External Dimensions (LxWxH) (mm)	1675×1275×1720
Weight (kg)	1500~2100
Weight Capacity (kg)	30
Grating Ruler (μm)	0.5 (Metal Foil Scale)
Minimum Display Unit (mm)	0.0001
Detection Accuracy (μm)	X/Y: 3.0 + L/200
	X⊥Y: 3.0 + L/200
	Z: 5.0 + L/200
Maximum Speed	XY: 600 mm/s

Get Quote Book a Demo

Versa Versa-F Premium Vision Measuring System

AI Snapshot Technology: 2 seconds for ultra-fast focus. Intelligent peak performance for Vision Measuring Machines and Flash Inspection Systems.

Versa-F Flagship Vision Measuring SystemMatirx Hybrid Metrology Imager Flagship: Supports contact probes, white light confocal, 3D line-scan laser, and other sensors. Includes standard large-field-of-view seamless stitching module. Adaptive travel range based on requirements; supports multiple sensor add-ons with dynamic software licensing.

AI SnapShot Technology 2 Seconds to Intelligent Peak Focus

Core Features

AI SnapShot technology focuses in 2 seconds
Up to 5-10x faster efficiency with our smart measurement system
Ideal for the semiconductor, medical, and precision electronics industries

Technical Specifications (Partial Display)

Technical Specifications
Product Model	F4030 / F5040 / F6050
Stroke (mm)	X:400~600 Y:300~500 Z:200
External Dimensions (LxWxH) (mm)	1200×850×1950
Weight (kg)	550~700
Weight Capacity (kg)	40~60
Grating Ruler (μm)	0.5 (Metal Foil Scale)
Minimum Display Unit (mm)	0.0001
Detection Accuracy (μm)	X/Y: 2.8 + L/220
	X⊥Y: 3.2 + L/220
	Z: 4.5 + L/220
Maximum Speed	XY: 800 mm/s

Get Quote Book a Demo

Omni Series Product Specifications Comparison

Compare key technical specs across models to quickly find the best measurement solution for you

Technical Specifications

Omni-C 686 Classic Mobile Bridge CMM

Stable and reliable contact coordinate measuring machine

Omni-C 7106 Classic Mobile Bridge CMM

Classic Mobile Bridge Coordinate Measuring Machine 7106 8106

Detailed Technical Specifications

No.	Item Goal	Name Scale	Reg Grid	Product Brand	Quantity
1	Host	Model	Omni Class 686		1 units
2	Probe System	Probe Holder	CZ10T	Lihe	1 sets
		Probe Module	CF20	Lihe	1 sets
		Probe	View Needle Probe List		1 sets
		Calibration ball mount	Standard Equipment	Standard Equipment	1 sets
		Calibration sphere	$25	Standard Equipment	1 sets
3	Control System	XH3000	Imported XH3000 Dedicated Control System	Italy	1 sets
4	Computer System	Computer	24" Dual-Core 3.0G/1T/500G	DELL	1 units
4	Computer System	Printer	A4 Laser Printer	HP USA	1 units
5	Software System	XT-DMIS CMM Specialized Software (CAD Premium)		United Kingdom	1 sets
6	Technical Documentation	Installation, Operation, and Maintenance Manual			1 sets
6	Technical Documentation	User Manual		--	1 books
7	Certificate	Certificate of Conformity		--	1 units
8	Fitting	SPCF-10-02+SBT-10-02		--	1 sets
	Air Source Filtration System	Standard Configuration		SMC	1 sets
	Clamp	φ16～φ25		--	1 sets
	Trachea	$12		--	3.0m

No.	Item Goal	Name Scale	Reg Grid	Product Brand	Quantity
1	Host	Model	Omni Class 7106		1 units
2	Probe System	Probe Holder	CZ10T	Lihe	1 sets
		Probe Module	CF20	Lihe	1 sets
		Probe	View Needle Probe List		1 sets
		Calibration ball mount	Standard Equipment	Standard Equipment	1 sets
		Calibration sphere	$25	Standard Equipment	1 sets
3	Control System	XH3000	Imported XH3000 Dedicated Control System	Italy	1 sets
4	Computer System	Computer	24" Dual-Core 3.0G/1T/500G	DELL	1 units
4	Computer System	Printer	A4 Laser Printer	HP USA	1 units
5	Software System	XT-DMIS CMM Specialized Software (CAD Premium)		United Kingdom	1 sets
6	Technical Documentation	Installation, Operation, and Maintenance Manual			1 sets
6	Technical Documentation	User Manual		--	1 books
7	Certificate	Certificate of Conformity		--	1 units
8	Fitting	SPCF-10-02+SBT-10-02		--	1 sets
	Air Source Filtration System	Standard Configuration		SMC	1 sets
	Clamp	φ16～φ25		--	1 sets
	Trachea	$12		--	3.0m

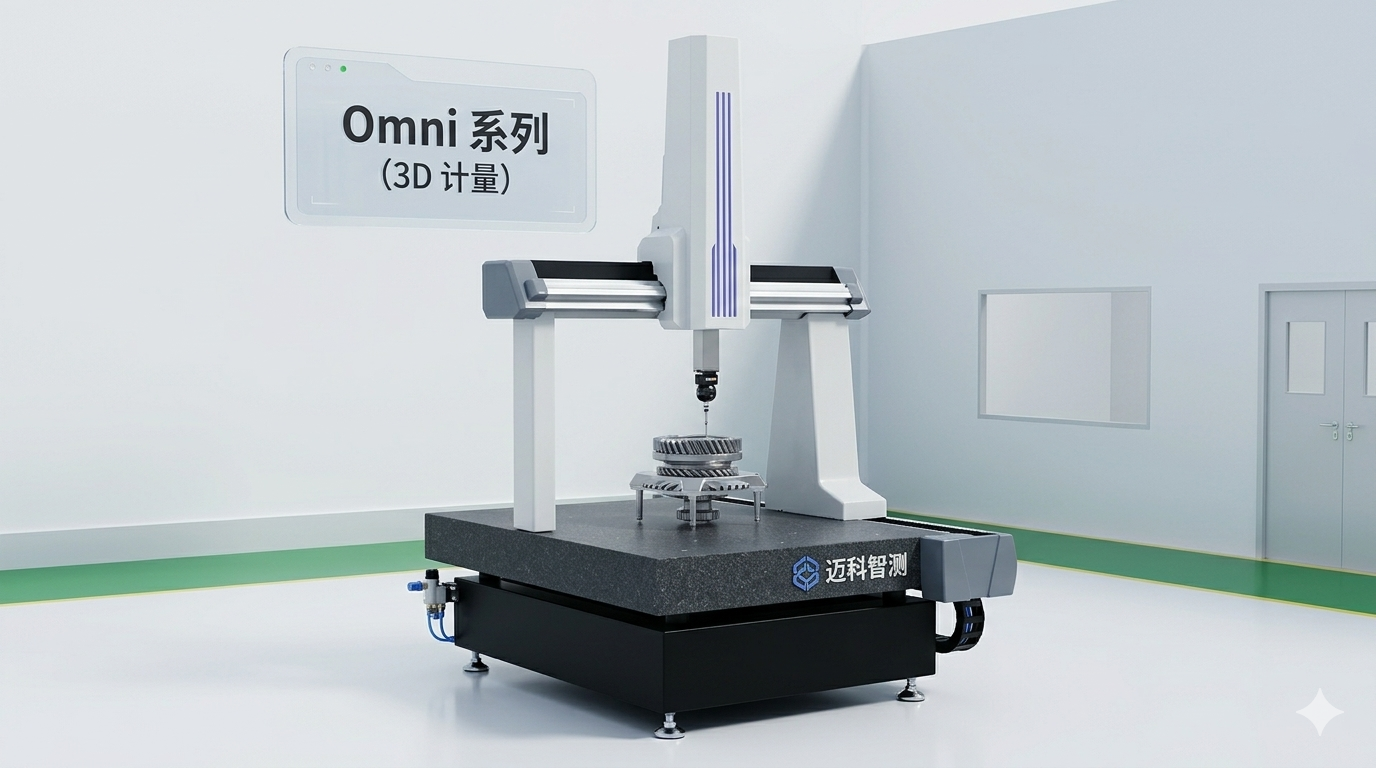

Omni Omni-C 686 Classic Mobile Bridge Coordinate Measuring Machine

Stable and reliable contact coordinate measuring machine

Omni-C 686 Classic Mobile Bridge Coordinate Measuring MachineStable and reliable contact coordinate measuring machine

Stable and reliable contact coordinate measuring machine

Core Features

Imported Aviation Aluminum Alloy Precision Triangular Crossbeam and Z-Axis Rail Material Technology
Imported RENISHAW reflective metal tape grating metrology system
Equipped with a dedicated CNC system for world-class high-performance coordinate measuring machines

Technical Specifications (Partial Display)

No.	Item Goal	Name Scale	Reg Grid	Product Brand	Quantity
1	Host	Model	Omni Class 686		1 units
2	Probe System	Probe Holder	CZ10T	Lihe	1 sets
		Probe Module	CF20	Lihe	1 sets
		Probe	View Needle Probe List		1 sets
		Calibration ball mount	Standard	Standard	1 sets
		Calibration sphere	$25	Standard	1 sets
3	Control System	XH3000	Imported XH3000 Dedicated Control System	Italy	1 sets
4	Computer System	Computer	24" Dual-Core 3.0G/1T/500G	DELL	1 units
4	Computer System	Printer	A4 Laser Printer	HP USA	1 units
5	Software System	XT-DMIS CMM Specialized Software (CAD Premium)		United Kingdom	1 sets
6	Technical Documentation	Installation, Operation, and Maintenance Manual			1 sets

Get Quote Book a Demo

Omni Omni-C 7106 Classic Mobile Bridge Coordinate Measuring Machine

Classic Mobile Bridge Coordinate Measuring Machine 7106 8106

Omni-C 7106 Classic Mobile Bridge Coordinate Measuring MachineClassic Mobile Bridge Coordinate Measuring Machine 7106 8106

Non-contact high-precision laser scanning measurement

Core Features

Imported Aviation Aluminum Alloy Precision Triangular Crossbeam and Z-Axis Rail Material Technology
Imported RENISHAW reflective metal tape grating metrology system
Equipped with a dedicated CNC system for world-class high-performance coordinate measuring machines

Technical Specifications (Partial Display)

No.	Item Goal	Name Scale	Reg Grid	Product Brand	Quantity
1	Host	Model	Omni Class 7106		1 units
2	Probe System	Probe Holder	CZ10T	Lihe	1 sets
		Probe Module	CF20	Lihe	1 sets
		Probe	View Needle Probe List		1 sets
		Calibration ball mount	Standard	Standard	1 sets
		Calibration sphere	$25	Standard	1 sets
3	Control System	XH3000	Imported XH3000 Dedicated Control System	Italy	1 sets
4	Computer System	Computer	24" Dual-Core 3.0G/1T/500G	DELL	1 units
4	Computer System	Printer	A4 Laser Printer	HP USA	1 units
5	Software System	XT-DMIS CMM Specialized Software (CAD Premium)		United Kingdom	1 sets
6	Technical Documentation	Installation, Operation, and Maintenance Manual			1 sets

Get Quote Book a Demo

Need expert selection advice?

Our technical experts will recommend the most suitable product model based on your measurement requirements.
